Description

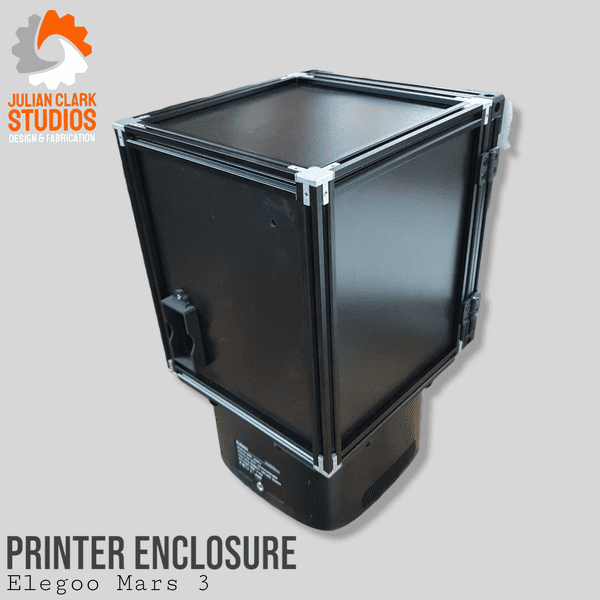

3D Printer Enclosure for the

Elegoo Mars 3




Designed and manufactured in the UK with premium components

ALL ENCLOSURES ARE ASSEMBLED AND READY TO RUN

"Resin 3D printing requires so many factors to achieve consistent, accurate and quality prints. The main factor being temperature or the resin and surrounding environment of the printer itself.

Having worked with many forms of 3D printing in the past six years, of which in the past few years heavily relying on resin based printing for projects in the film and animation industry, the need for consistent results is a must all year round.

So I am happy to make available my own design of a Heated Enclosure for the Elegoo range of printers, used extensively in my studio.  "

Julian Clark 2021




Features:
  • Super tough and lightweight aluminium extrusion chassis
  • Includes 200 watt Mini PTC Heater (UK or US/Canada option) (additional Temperature Controller required, sold separately)
  • Versatile hinged door with clasp - full access to resin vat and build plate
  • No need for loads of clearance above the printer - easily remove the resin vat and build plate just by opening the door
  • 5mm thick, insulated and water proof panelling
  • Heats internal chamber by 20 Degrees Celsius in 10 minutes
  • Complete with bracket holder for additional heater, simply slots in!
  • Pre Drilled Mounting hole for heat probe
  • Amber tinted, 3mm thick premium acrylic door panel blocks the required UV spectrum
  • Only weighs 2.9kg
  • Adjustable feet/clamps for a snug fit to the printer base
  • Modular design for easy upgrades and attachments (such as cameras, extraction etc.)
  • Branded decal included
  • Dimensions Width 260 x Depth 280 x Height 320mm (455mm including base of printer) Allow 100mm projection from the rear for heater unit


Complete with door for greater versality! Fully sealed front opening door with strong clasp to retain heat and odours. great for setups with little space providing easy access to top up resin, remove prints etc. - No need for loads of clearance above the printer.





Customise your enclosure decal!   Like to name your printers? treat yourself to a custom decal in the style of the existing logo but with a name of your choice.

Just choose the custom decal option and your choice to the order notes upon checkout!


Designed for this type or Mini Heater, a PTC based fan heater with safety cut off, super quite and very economical when used with an external temperature controller. Slots into a custom made bracket for easy plugin, directed at the base of the enclosure to ensure even thermal distribution throughout the chamber.



For an optimal and economical heated environment an external temperature controller is recommended, there are many types available based on your home country, the only requirement being that the temperature probe matches this one.

An access hole with a tight fit rubber grommet is included at the rear of the enclosure, ready for insertion. To ensure consistent internal temperature, use only this type.









Contents:
1 x Pre-Built Enclosure


*Printer not included
*Temperature Controller not included
*Colour of fixings may vary




Specifications

Brand JulianClarkStudios
Weight 2.9kg
